PASSENGER LIFT

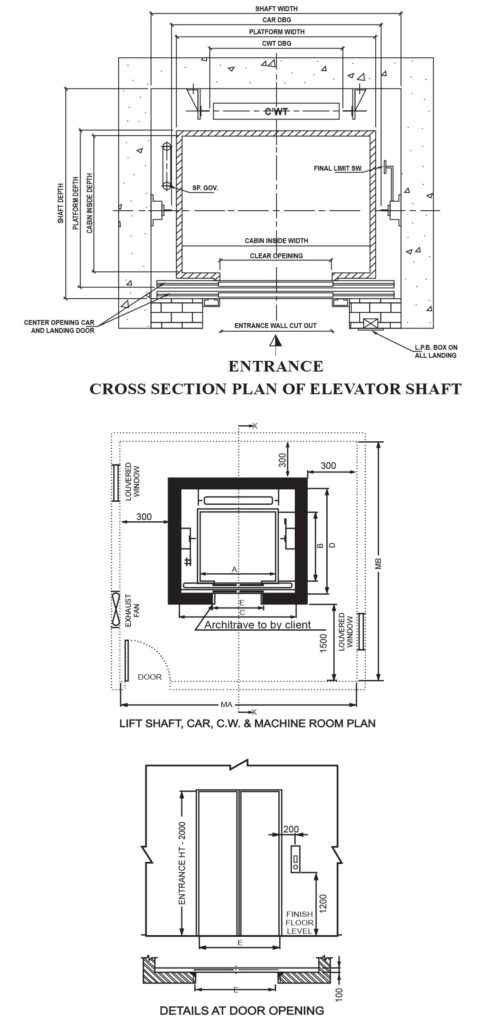

AUTO CENTRE OPENING
|
CAPACITY |
|
CAR |
INSIDE |
LIFT |
WELL |
ENTRANCE |
|
MACHINE |
ROOM SIZE |
|
PIT |
OVER HEAD |
|
No. Of Persons |
Load In Kg. |
Width |
Depth |
Width |
Depth |
Width |
Height |
Width |
Depth |
Height |
PIT |
4500 |
|
4 |
272 |
1100 |
700 |
1600 |
1250 |
700 |
2000 |
3100 |
3750 |
2500 |
1600 |
4500 |
|
5 |
340 |
1100 |
850 |
1600 |
1400 |
700 |
2000 |
3100 |
3900 |
2500 |
1600 |
4500 |
|
6 |
408 |
1100 |
1000 |
1600 |
1600 |
700 |
2000 |
3100 |
4100 |
2500 |
1600 |
4500 |
|
8 |
544 |
1300 |
1100 |
1800 |
1700 |
800 |
2000 |
3300 |
4200 |
2500 |
1600 |
4500 |
|
10 |
680 |
1350 |
1300 |
1900 |
1900 |
800 |
2000 |
3400 |
4400 |
2500 |
1600 |
4500 |
|
13 |
884 |
2000 |
1100 |
2500 |
1700 |
900 |
2000 |
4000 |
4300 |
2500 |
1600 |
4500 |
|
16 |
1088 |
2000 |
1300 |
2500 |
1900 |
1000 |
2000 |
4000 |
4400 |
2500 |
1600 |
4500 |
|
20 |
1360 |
2000 |
1500 |
2500 |
2100 |
1000 |
2000 |
4000 |
4600 |
2500 |
1600 |
4500 |

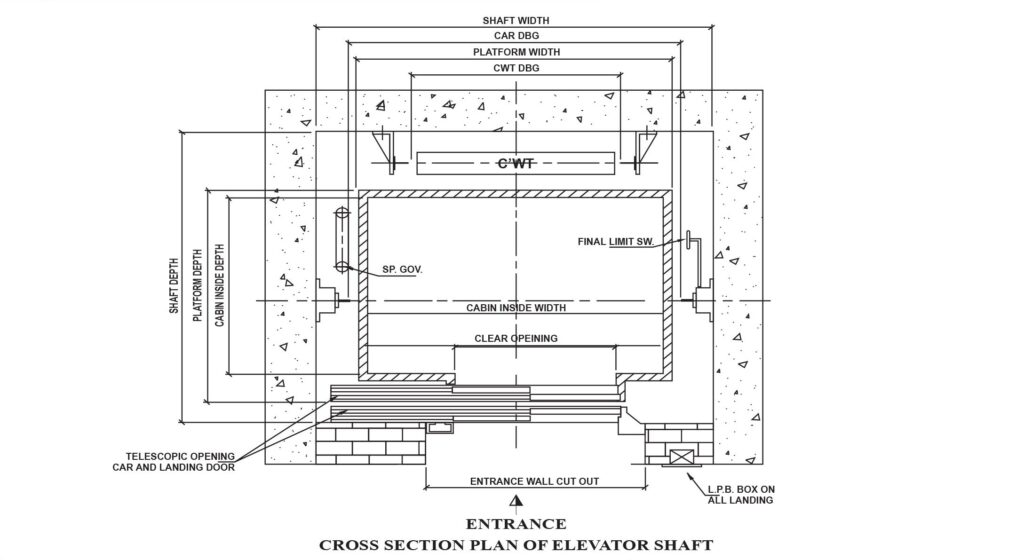

AUTO TELESCOPIC
| CAPACITY | CAR | INSIDE | LIFT | WELL | ENTRANCE | MACHINE | ROOM SIZE | PIT | OVER HEAD | |||
| No. Of Persons | Load In Kg. | Width | Depth | Width | Depth | Width | Height | Width | Depth | Height | PIT | 4500 |
| 4 | 272 | 950 | 800 | 1400 | 1400 | 700 | 2000 | 2900 | 3900 | 2500 | 1600 | 4500 |
| 5 | 340 | 1000 | 900 | 1450 | 1500 | 700 | 2000 | 2950 | 4000 | 2500 | 1600 | 4500 |
| 6 | 408 | 1000 | 1100 | 1450 | 1700 | 700 | 2000 | 2950 | 4200 | 2500 | 1600 | 4500 |
| 8 | 544 | 1100 | 1300 | 1550 | 1950 | 800 | 2000 | 3050 | 4450 | 2500 | 1600 | 4500 |
| 10 | 680 | 1200 | 1450 | 1700 | 2100 | 800 | 2000 | 3200 | 4600 | 2500 | 1600 | 4500 |
